Intelligent Transformer Testing Equipment and Test System for Power Transformer Laboratory Analysis Electrical Parameter Measurement and Comprehensive Transformer Performance Evaluation

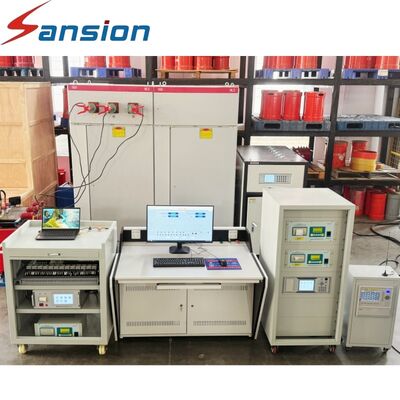

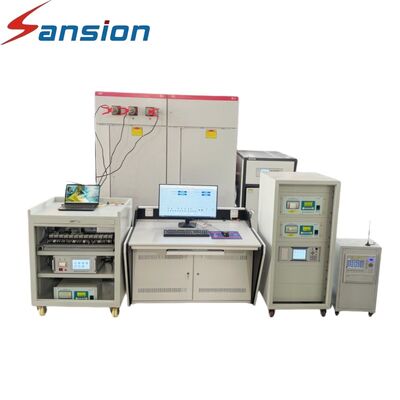

Large Image : Intelligent Transformer Testing Equipment and Test System for Power Transformer Laboratory Analysis Electrical Parameter Measurement and Comprehensive Transformer Performance Evaluation

Product Details:

Place of Origin:	China
Brand Name:	Sansion Power
Certification:	CE/SGS/EMS/ISO 9001
Model Number:	SXBZ

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Plywood Case
Delivery Time:	30 Working Days
Payment Terms:	L/C,T/T

Contact Now Chat Now

Intelligent Transformer Testing Equipment and Test System for Power Transformer Laboratory Analysis Electrical Parameter Measurement and Comprehensive Transformer Performance Evaluation

Description

Control System:	Computer-Based Digital Control	Measurement Type:	Electrical Parameter Acquisition
Output Format:	Digital Test Data And Reports	Test Range:	Customized According To Transformer Parameters
Data Management:	Software Collection, Storage, Analysis	Application Scope:	Laboratory Testing And Transformer Analysis
Customization Support:	Yes	Testing Procedures:	Automatic Data Acquisition
Highlight:	Intelligent transformer testing equipment , Power transformer laboratory analysis system , Electrical parameter measurement test system

Product Description

Intelligent Transformer Testing System

The Intelligent Transformer Testing System provides a professional solution for electrical laboratories and testing organizations to analyze transformer operating characteristics. It combines measurement functions and intelligent control technology to provide comprehensive test data for transformer evaluation and research applications.

This transformer test equipment is suitable for routine verification, technical analysis, and performance assessment of different transformer types. The system offers automatic data acquisition, digital measurement management, and efficient testing procedures, helping engineers obtain accurate information for transformer condition analysis and technical decisions.

Product Advantages

Suitable for professional testing laboratories and research applications.
Provides detailed electrical parameter measurement and analysis.
Digital control improves testing convenience and accuracy.
Supports customized laboratory testing requirements.

Technical Parameters

Item	Specification
Equipment Name	Intelligent Transformer Testing System
Application	Laboratory Testing And Transformer Analysis
Test Range	Customized According To Transformer Parameters
Control System	Computer-Based Digital Control
Measurement	Electrical Parameter Acquisition
Output	Digital Test Data And Reports

FAQ

Q1: Who uses this transformer testing system?

A: It is mainly used by laboratories, testing organizations, and transformer manufacturers.

Q2: Can it be used for transformer research projects?

A: Yes, it supports transformer performance analysis and technical evaluation.

Q3: How is testing data managed?

A: Data can be collected, stored, analyzed, and exported through software.

Q4: Can customers request special configurations?

A: Yes, customized solutions are available according to testing needs.
